Pos.1 Combustion air fan with Burner Control Unit (BCU)
Current consumption:
7,5, kW, directly starting
Voltage:
440 V, 3 phases, earth, 32 A
Dimensions:
800 x 1000 (LxW), installed on wheels
Sound:
78 dba
BCU:
UV Flame supervision, PLC controlled, alarm, SIL3 flame circuit
Weight:
320kg
Pos.2 Gas / Fuel Supply Station
Safety components:
double gas safety shut-off, pressure switch
Burner cooling/purging:
compressed air max 1,5 bar, 5-10Nm³/h
Max. Flow:
100 Nm³/h (1100kW)
Max. Pressure:
in 4 bar max., internal pressure reducer to 0,5 bar
Weight:
25 kg
Couplings:
Camlock 1” / Cooling Air ¼”
Pos.3 High velocity burner, type HV1500 for gas
Safety components:
UV Flame Sensor, automatic ignition, pressure switch
Power:
150 Nm³/h Natural Gas (approx. 3MW)
Nozzle:
High Temperature Steel (1250°C) optional nickel free
Nozzle Dimensions:
100x100mm (other dimensions on request)

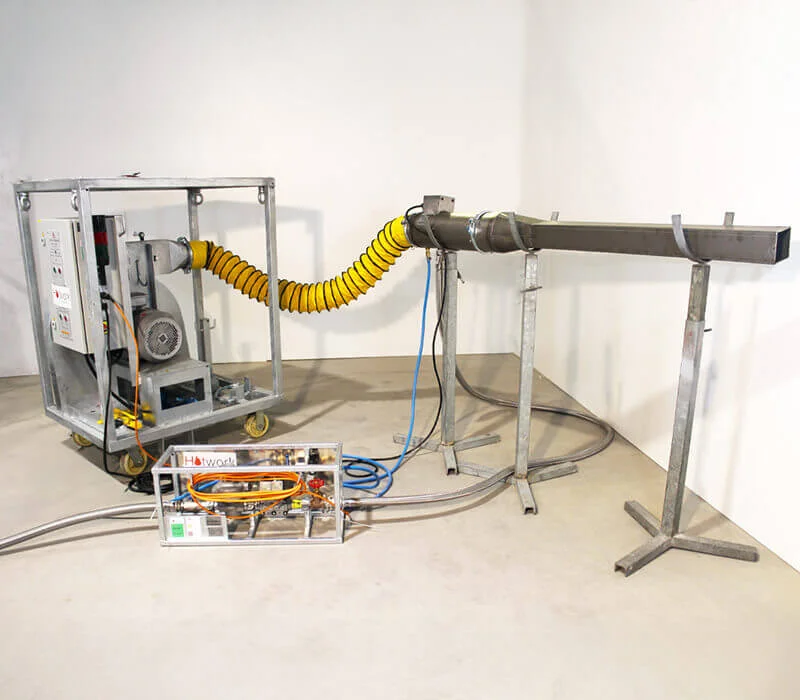

HV-1500
The HV1500 is a high velocity burner that is meticulously engineered for precision and efficiency industrial applications. This advanced burner is designed to deliver to ensuring uniform heat distribution. The HV1500 is the ideal solution for a variety of processes including dry outs, preheating, and curing.
- Ideal for smaller or mid-size furnaces and preheat projects.
- Compact design allows easy transportation and quick setup.
- Delivers high velocity air and flame for uniform heat distribution.
- Reliable temperature control minimizes thermal stress on materials.
- Energy-efficient design reduces operational fuel costs.
- Built with safety mechanisms for secure field operation.
- Minimal maintenance with robust component design.
- Perfect for localized heating without compromising performance.
