The Six Way Console from Hotwork International is engineered to provide precise, safe, and efficient control of multiple heating zones during industrial furnace commissioning and heat-up operations. Here’s why it’s the preferred choice for industry leaders:
Versatile Multi-Zone Control
Manage up to six independent heating circuits simultaneously—ensuring uniform heat distribution and optimized performance across complex furnace designs.
Enhanced Safety Features
Equipped with integrated safety controls and emergency shutoff systems, the console ensures the highest level of operator protection during high-temperature operations.
Compact & User-Friendly Design
Built for mobility and ease of use, the console is compact, intuitive, and ideal for on-site deployment in demanding environments.
Increased Efficiency
Streamline the heat-up process by controlling multiple burners or heating elements from a single unit, reducing downtime and labor intensity.
Flexible Integration
Compatible with various burner systems and adaptable to different process requirements—making it a highly flexible tool for diverse industrial applications.
Rugged Industrial Build
Designed for harsh operating conditions, the Six Way Console delivers reliable performance in aluminum, glass, steel, and other high-temperature industries.

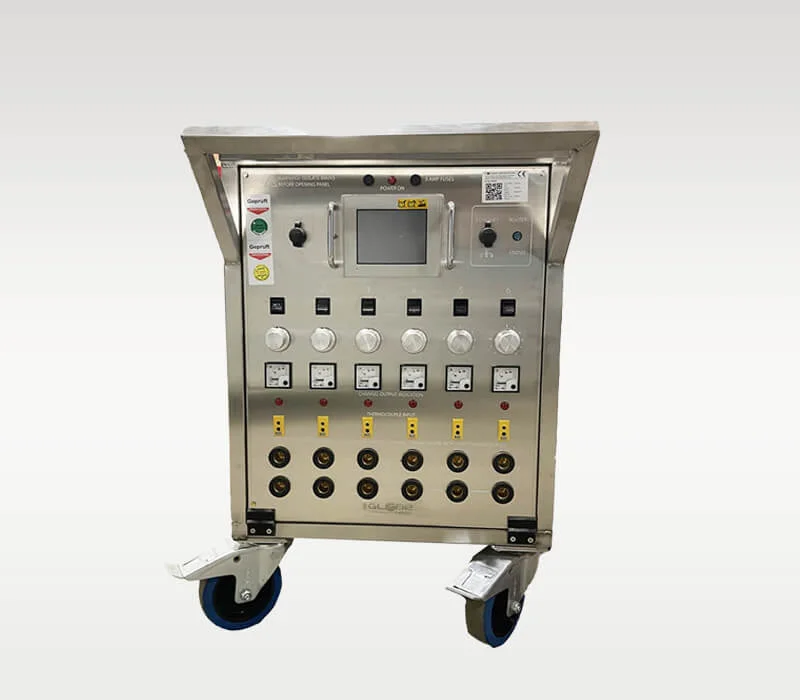

Six-way console
Equipment for thermal treatments both electric and combustion, equipped with a digital control system to develop a uniform thermal process, we have furnaces to make in-house heat treatment for large vessel pressure pipes, etc. Six-way Console (Equipped with standard or wireless heat master)
- Electrical rating: 50 kVA,
- Transformer: Air natural, Class H insulation
- Dimensions: 68cmWx70.5cmDx107cmH
- Weight: 312 kg s
- Casing: Carbon Steel, Stainless Steel, or Heavy Duty Polyethylene
- Primary Supply: 380 - 76A/415 - 70A/440 - 65A, 3 phase
- Output circuits: 6 pair at the rear, twist lock connectors
- Protection Overload: 3-phase MCCB. Over temperature sensor in windings – 3-phase MCCB with shunt trip.
